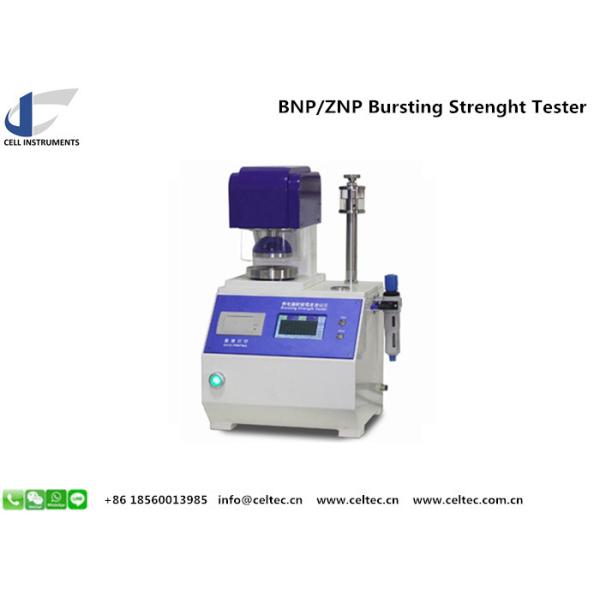

New model board and paper bursting strength tester Board Bursting Tester touch screen

Name: New model board and paper bursting strength tester Board Bursting Tester touch screen
Brand: Cell Instruments
Price: 1 USD

Buy cheap New model board and paper bursting strength tester Board Bursting Tester touch screen product

Brand Name : Cell Instruments

Model Number : NPD

MOQ : 1 SET

Payment Terms : TT, LC

Supply Ability : At Stock

Delivery Time : 3~5 days

Packaging Details : Plywood Carton

Place of Origin : China

Power : AC220V±10% 50HZ

Warranty : 1 Year

Usage : Paper Testing Instrument,bursting tester

Product name : automatic bursting strength tester

Power supply : AC220V±10%

Application : paper and boards

Name : Mullen Cardboard Bursting Strength Tester,Tear Strength Tester,Digital Paper Burst Tester

Test materail : Paper and board

Certification : CE

Price : Get An Offer

Contact Now

Paper and board bursting strength tester is for paper and corrugated boards.

Paper and board bursting strength tester is applicable to all types of board (including corrugated and solid fibreboard) having bursting strengths within the range 350 kPa to 5 500 kPa. It is also applicable to papers or boards having bursting strengths as low as 250 kPa

Paper and board bursting strength tester has Features

5 in touch screen operation
High-strength high-pressure oil circuit sealing system with double seal knob
Delayed pressurization and pressure relief control
Equipped with water vapor filter device, protection circuit device stability
Equipped with calibration and manual pressurization and pressure relief contro
systems
The cylinder part, the upper and lower clamping parts are 304 stainless steel
With safety cover, and power supply anti-interference protection module
Chinese and English dual language switching
Units conversion of Kg/cm2,kpa,lbf/in2
Micro printing

New model board and paper bursting strength tester Board Bursting Tester touch screen

Test Range	for Paper: 70~1600 KPa for Board: 150 ~5600kpa
Resolution	0.01 KPa
Diaphragm resistance	(9±0.2)mm/(30±5)kPa
Transmit Hydraulic Volume	95±5ml/min (for paper) 175±5ml/min (for board)
Plate Diameter	upper:30.5±0.1mm, lower: 33.5±0.1mm (for paper) upper:31.5±0.1mm, lower: 31.5±0.1mm (for board)
Clamping Force	100kpa~1200kpa(adjustable)
Unit Conversion	Kg/cm2, kpa, LBF/in2
Force Accuracy	+ / - 0.1% or less
