Free falling dart impact tester Dart weight drop impact tester

Name: Free falling dart impact tester Dart weight drop impact tester
Brand: Cell Instruments
Price: 1 USD

Place of Origin : China

Brand Name : Cell Instruments

Certification : CE

Model Number : FDT-01

MOQ : 1 SET

Packaging Details : Plywood Carton

Delivery Time : 3~5 days

Power : Electronic

Usage : Impact Testing Machine

Payment Terms : TT, LC

Price : Get An Offer

Supply Ability : At Stock

Contact Now

Free falling dart impact tester Dart weight drop impact tester determinates the energy that causes plastic film to fail under specified conditions of impact of a free-falling dart.

Free falling dart impact tester Dart weight drop impact tester features

PLC control and touch screen operation
Test Method A and B selectable
Test results multi-units display
Electromagnetic dart release mechanism
Sample pneumatic clamping
Manual and foot switch
Standard complied hemispherical heads
Built-in observation light for sample status easy judgment
Micro-printer for data export
Professional software(optional)

Free falling dart impact tester Dart weight drop impact tester

Free falling dart impact tester Dart weight drop impact tester Technical Data

Test Method Method A or Method B(optional)

Test Range Method A: 50~2000g Method B: 300~2000g

Dart Diameter Method A: 38±1mm Method B: 50±1mm

Impact Height 660mm/1500mm

Accuracy 0.1g (0.1J)

Specimen Clamp Pneumatic Clamp

Gas Supply 0.6 MPa

Gas Port Size Φ8 mm PU Tubing

Specimen Size > 150 mm x 150 mm

Power Supply AC 220V 50Hz

Dimension Method A: 500 mm (L) x 450 mm (W) x 1200 mm (H)

Method B: 500 mm (L) x 450 mm (W) x 2200 mm (H)

Standards

ASTM D1709 ISO 7765

Buy cheap Free falling dart impact tester Dart weight drop impact tester product

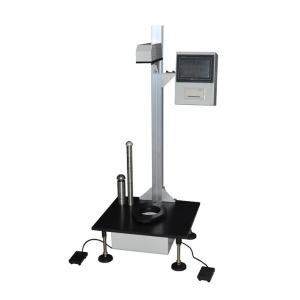

Free falling dart impact tester Dart weight drop impact tester Images
