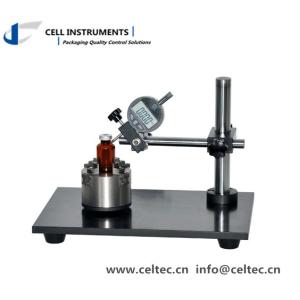

Medical bottle perpendicularity tester Coaxiality tester

Name: Medical bottle perpendicularity tester Coaxiality tester
Brand: Cell Instruments
Price: 1 USD

Buy cheap Medical bottle perpendicularity tester Coaxiality tester product

Place of Origin : China

Brand Name : Cell Instruments

Model Number : CRT-01

MOQ : 1 SET

Packaging Details : Plywood Carton

Delivery Time : 3~5 days

Payment Terms : TT, LC

Supply Ability : At Stock

Certification : CE

Power : Electronic

Usage : Bottle test

Price : Get An Offer

Contact Now

Medical bottle perpendicularity tester measures the coaxial deviation of ampoule bottle and penicillin bottle. It is essential model for pharmaceutical companies and testing institutions. It's based on YBB00192003.

Medical bottle perpendicularity tester principle

The bottle is fixed on a rotating plate and the bottle mouth is contacting with dial gauge. Record the maximum and minimum reading after rotating a full circle of 360 °. The 1/2 of the difference between the two is the vertical axis deviation value.

Medical bottle perpendicularity tester Coaxiality tester

Medical bottle perpendicularity tester technical data

Sample Diameter: 5mm-80mm (customization available)

Test Range: 0-12.7mm (customization available)

Division value: 0.001mm

Measurable Height: 15mm-150mm (customization available)

Dimension: 330mm(L)*220mm(W)*230mm(H)

Weight: 12Kg

Medical bottle perpendicularity tester Coaxiality tester

Medical bottle perpendicularity tester standard

YBB00332002, YBB00192003, GB 8452, GB 2639

Configuration

mainframe, digital measuring head

Medical bottle perpendicularity tester Coaxiality tester

Medical bottle perpendicularity tester Coaxiality tester Images
